Entirely conceived, engineered and manufactured in Great Britain, Huei has been carefully designed to provide turntables with the same high standards of amplification that Chord Electronics has become known for over the past 30 years.
Benefitting from both Moving Magnet and Moving Coil functionality, Huei offers compatibility with a huge range of cartridges thanks to comprehensive gain and impedance-matching options; Huei’s high- and low-gain switching settings are easily accessible via front-panel controls, introducing welcome flexibility.
Huei’s advanced design offers (for the first time in a Chord Electronics phono preamp) ultra-low-noise microprocessor control of its main features, including a convenient memory function. With multiple options for impedance-matching, seven-stage switchable gain and a switchable rumble filter, Huei’s design offers comprehensive compatibility.

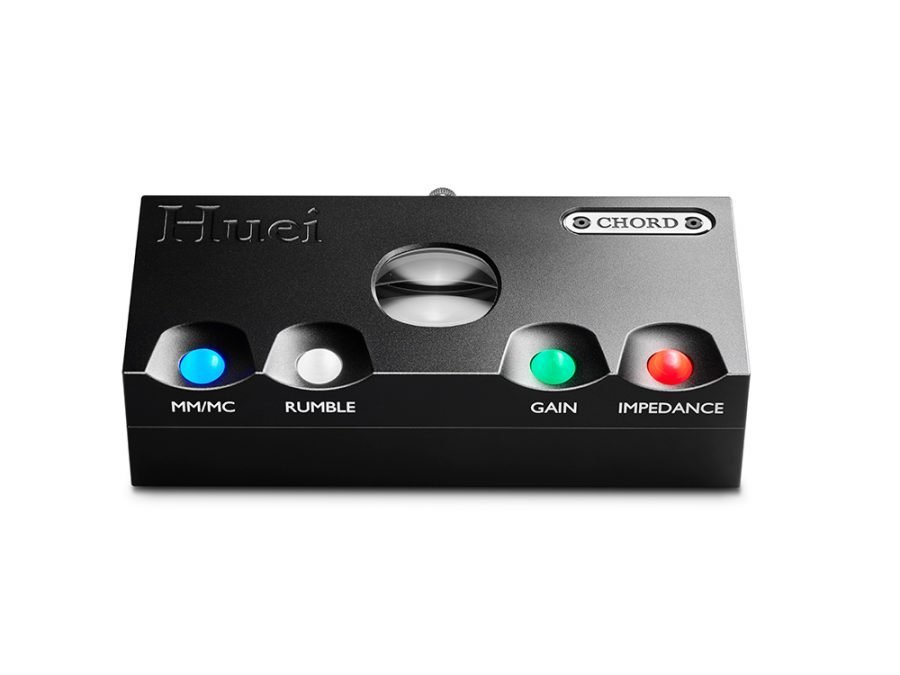

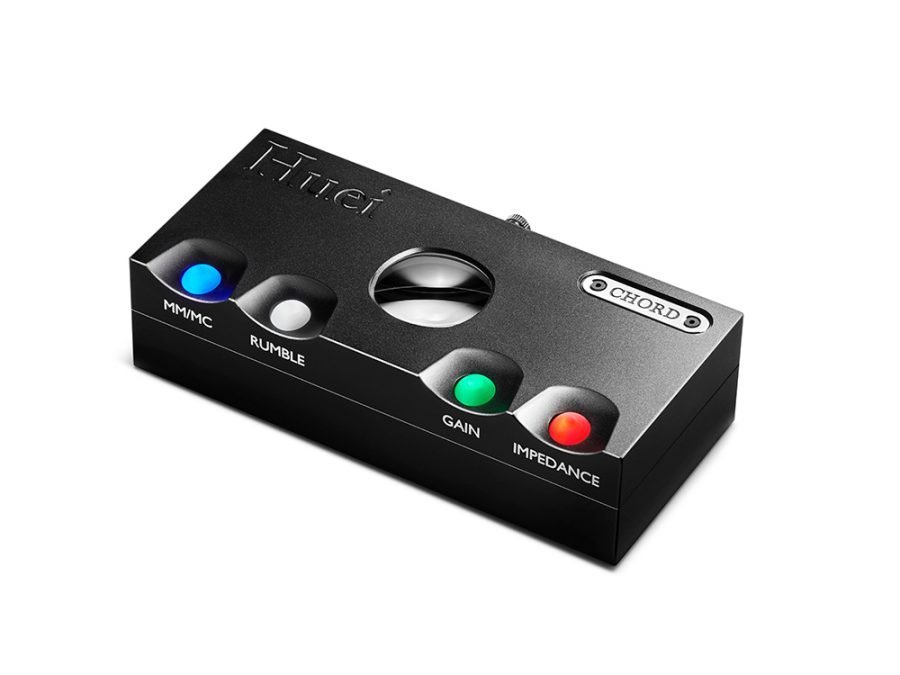

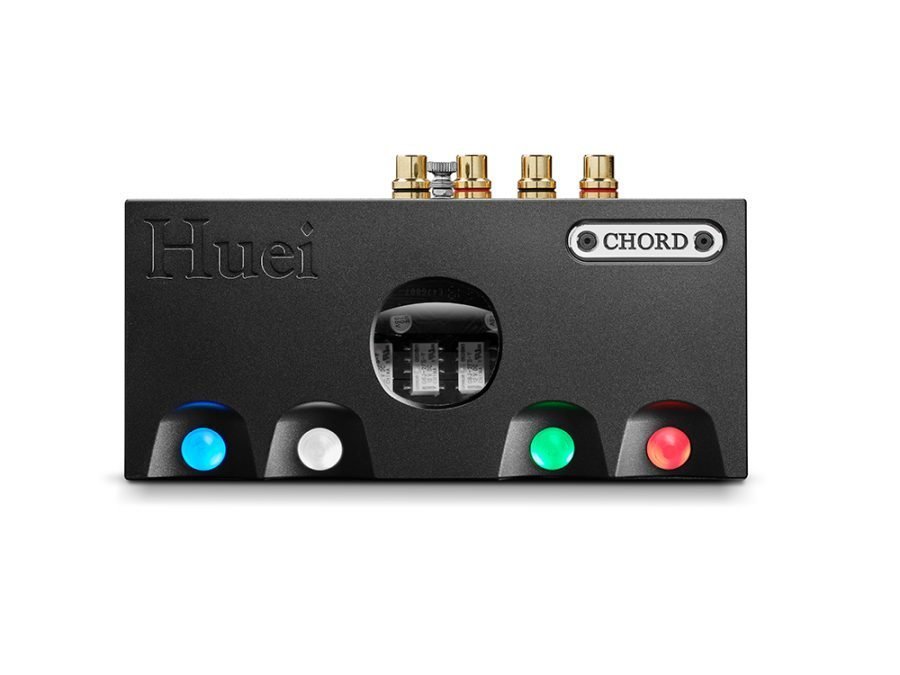

Precision-machined from solid aircraft-grade aluminium billet, Huei has a similar form factor to the company’s Qutest DAC and also offers a top-mounted viewing window into the illuminated electronics within. The design also shares the same polychromatic control spheres the company has become known for in its digital products. The illuminated front-panel spheres offer direct access to Huei’s gain and impedance settings, selection for MM/MC cartridges and access to the on-board rumble filter.

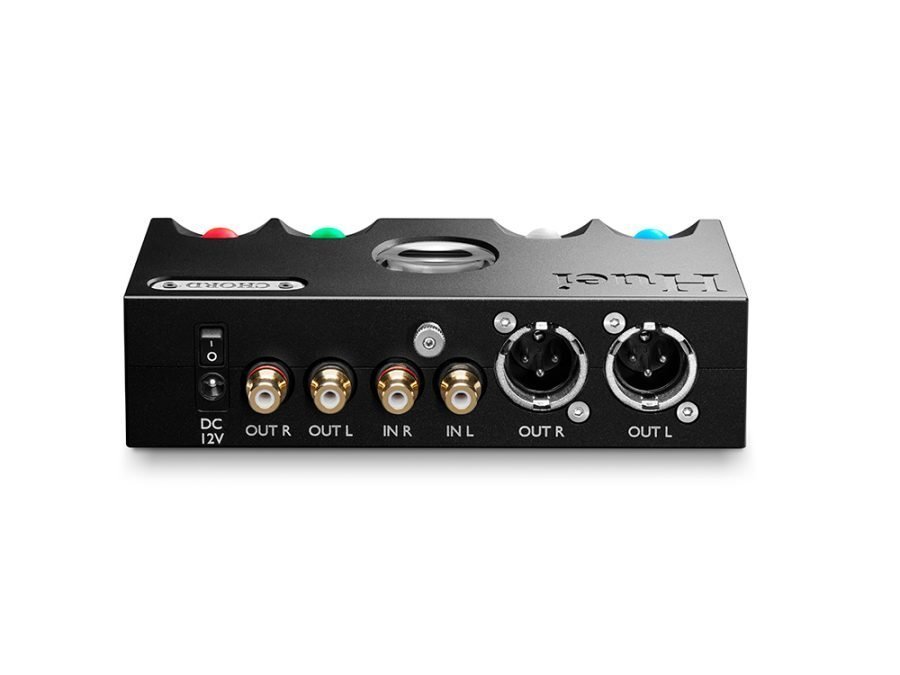

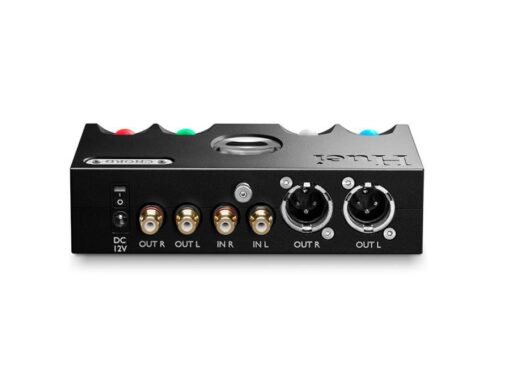

Huei is a stylish, practical and high-performance solution for integrating turntables into Chord Electronics’ (and other) systems and features both unbalanced (RCA) and balanced outputs (XLR) with RCA inputs. A high-quality 12V external power supply is also supplied.
Moving magnet and moving coil
1x Stereo unbalanced RCA input
1x Stereo unbalanced RCA output
1x Stereo balanced XLR output
Huei user manual
12V 2A Switching barrel type power supply
Gain/impedance reference card
Moving magnet: 47,000Ω
Moving coil: 100Ω – 3,700Ω, 12-step user selectable
Moving magnet: 21dB – 42dB, 8-step user selectable
Moving coil: 49dB – 68dB, 8-step user selectable
Max Output Voltage RMS:
RIAA Curve = 12Hz to 25kHz
Rausch Slope -24dB per octave below 50Hz
Input Power Supply:
12v – 100v to 240v 50/60Hz PSU
41mm (H) x 160mm (W), 72mm (D)
