64 Audio – U12t

2.149

Description

The U12t does it all, delivering immersive sound and impeccable spatial imaging. It’s clean highs extend beautifully with a warm and engaging low-end response – just like its custom counterpart, the A12t. Offering reference-level detail, this IEM is among the best for multi-instrumentalists, engineers, sound monitors, and audiophiles.

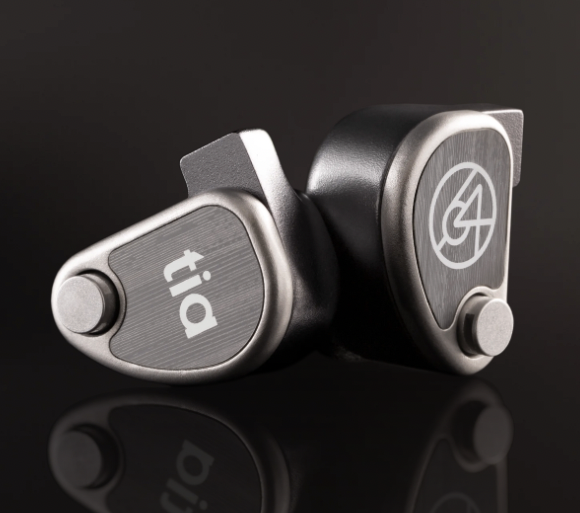

Each ergonomic shell is machined out of a solid piece of aluminum and finished with an elegant brushed aluminum faceplate.

Tubeless In-Ear Audio (tia) is a patented IEM design methodology that aims to reduce unwanted resonance and distortion for a transparent and lifelike sound signature. The tia system is comprised of three major elements: open balanced armature tia drivers, the tia single-bore design, and tia acoustic chambers. U12t features two major elements of the tia system: the tia driver and the tia single-bore design.

Air Pressure Exchange (Apex) is a patented vent that releases air pressure in a sealed ear canal all while retaining standard IEM levels of isolation; enabling musicians and music enthusiasts to listen more comfortably for longer. This venting alleviates listener fatigue and allows for a much more realistic soundstage. Apex comes in three module variations for U12t: mX, m15 and m20.

Linear Impedance Design (LID) is a patented circuit that corrects the non-linear electrical resistance of the multiple driver-sets comprising this 12 driver IEM. Varying source amplifier output impedance in devices like smartphones, body packs, DAC/amps, and DAPs typically results in varying frequency response across them, depending on the increase in resistance. Restoring proper interaction with the source and preserving the desired sound signature enables a consistent reliable sound.

SPECIFICATIONS
Driver Type/Count

Twelve precision balanced armature drivers

Driver Configuration

1 tia high, 1 high-mid, 6 mid, 4 low

Frequency Response

10Hz – 20kHz

Sensitivity

108db dB/mW

Impedance

12.6 +1/-2 Ω from 10Hz – 20kHz

Crossover

Integrated 4-way passive crossover

Isolation

-20dB w/ m20 module, -15dB w/ m15 module,

-10dB w/ mX module

IN THE BOX
U12t Universal In-Ear Monitors
64 Audio Sticker
64 Audio Premium Leather Case
TrueFidelity Eartips (S,M,L)
Silicone Eartips (S,M,L)
48″ Detachable Premium Cable
m20 apex Modules
m15 apex Modules
mX apex Modules

Merk

64 Audio
