Description
-
1 Anti-Finger prints coating
-
2 DLC (Diamond-Like carbon) coating
Hardness 9H+
-
3 Corning Corning Gorilla Glass 5
-
4 Retina LCD
3.77 inches IPS GFF Retina LCD
Clear button design
Easy operation
CNC Craft
Aircraft Aluminum Alloy Chassis

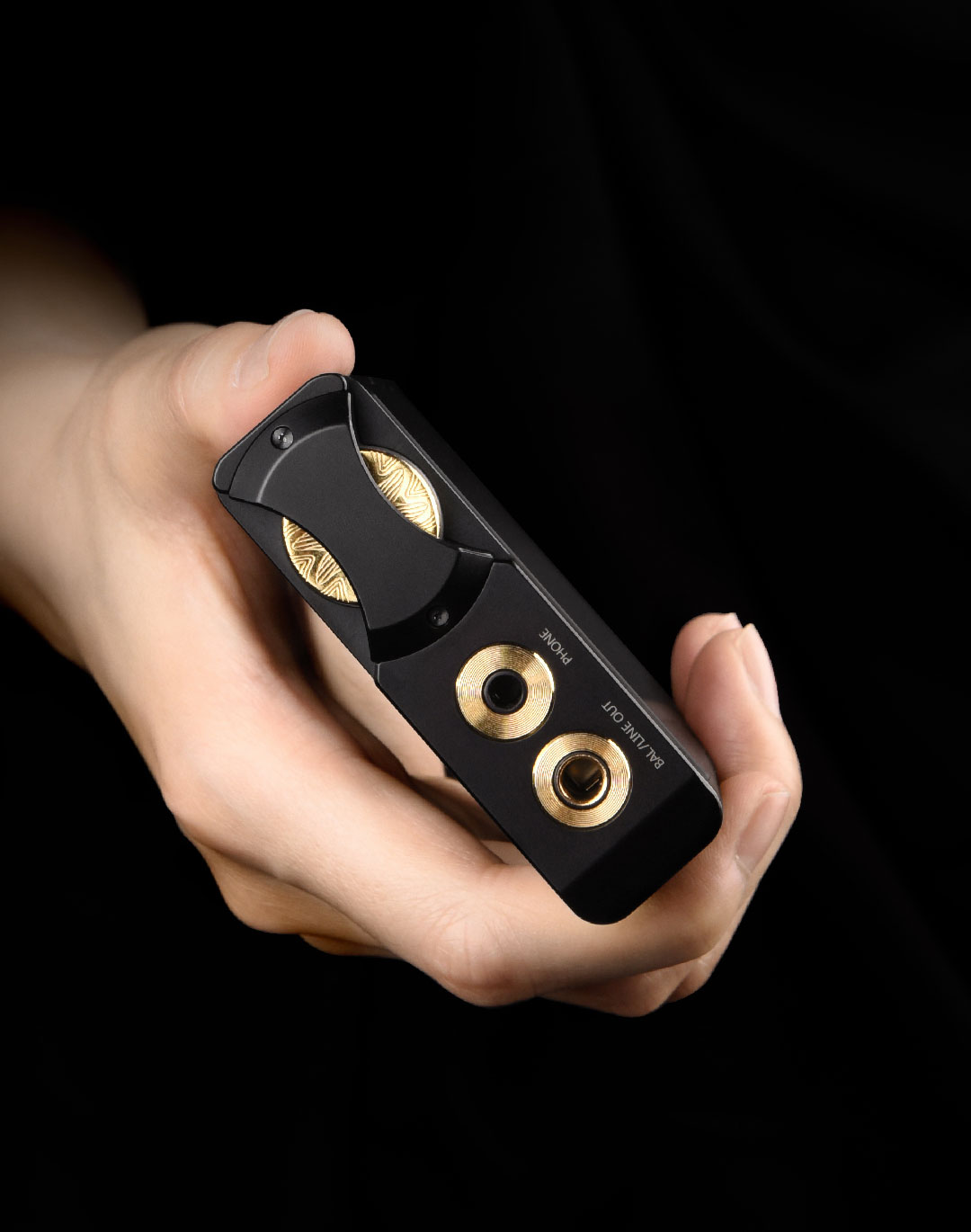

Two different output solutions
4.4mm balanced headphone amp: OPA1622
3.5mm unbalanced headphone amp: LME49600
Support 4.4mm balanced and 3.5mm unbalanced output Max. Output 500mW / Per channel
Apollo pattern
Volume knob
Breath LED
Clear button design
Easy operation
CNC Craft
Aircraft Aluminum Alloy Chassis

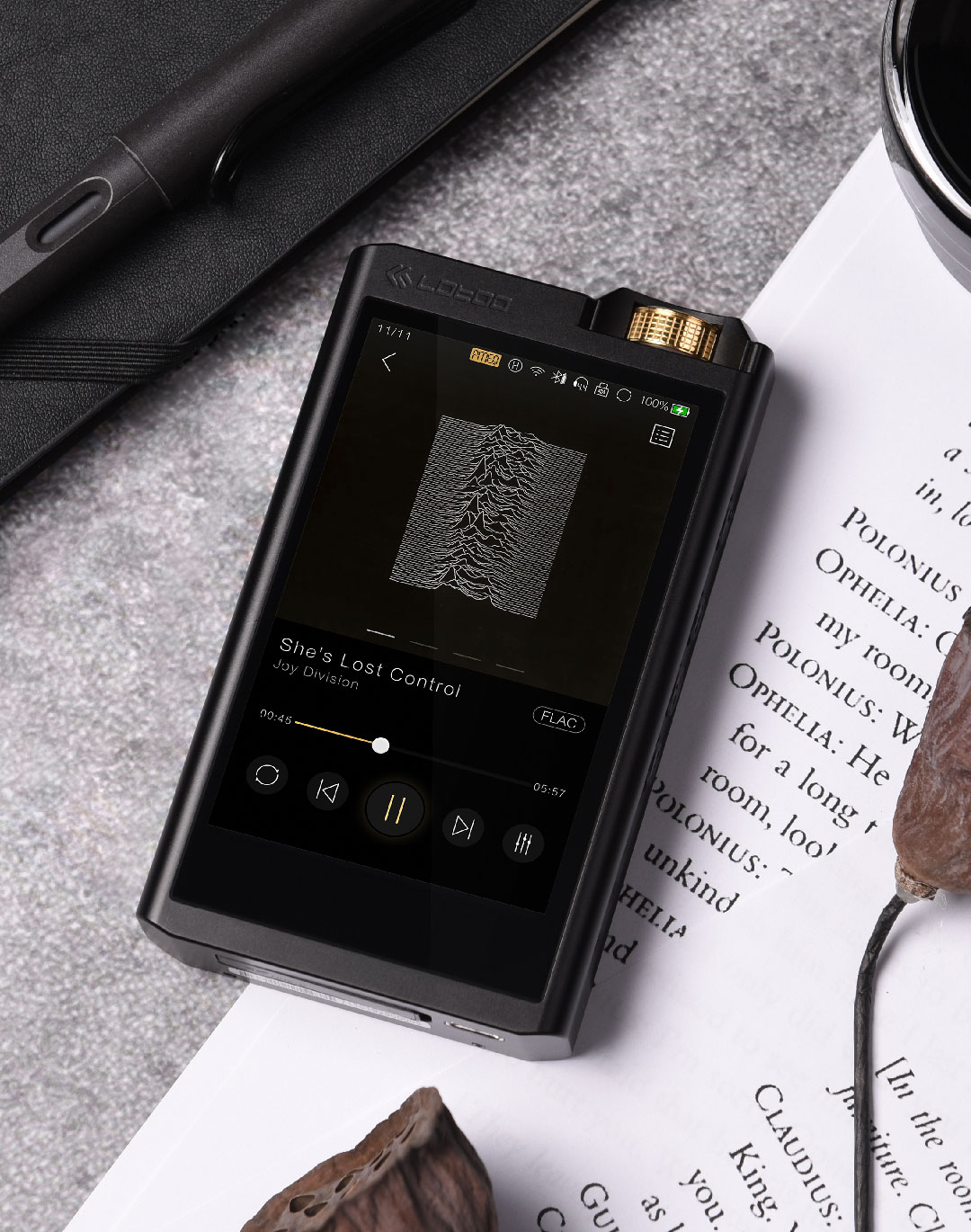

Smooth UI experience
Professional Playback Interface
Specs
General Specs
MaterialAircraft Aluminum Alloy ChassisProcessorFreescale i.MX 6Audio DSPADI BF70X DSPWireless Co-processorIngenic X1000Operating SystemLTOSDisplay3.77inch IPS LCD
Display Resolution480×800Interactive ModeTouch + buttonFirmware UpdateSupportedSize68.6 x 119 x 21mm( W x H x D )Weight311g
USB
USB SpecUSB 3.1 Gen2 (10G bps)USB portType-CUSB DACSupported
USB Charge2.5AUSB Data transportSupported
Extended Storage
Storage TypeSD/SDHC/SDXCSpeed LevelSD 4.0 ( UHS-II )
Max. Capacity2TB
Battery Spec
Battery5400mAH Li-Polymer
USB Charger Adapter＞5V/2.5A
Bluetooth
BluetoothBluetooth V4.2
HD BluetoothLDAC
Playback
DSD formatDSD64 / DSD128 / DSD256 /DSD512FormatsDFF / DSF / ISO / FLAC / APE ／WAV / AAC / ALAC / MP3 / WMA / M4A / WavePack / OGGDAC ChipAKM4497EQXRC ChipAKM4137EQ
Headphone Amp ChipOPA1622 / LME49600DSD Sample rate2.8MHz/5.6MHz/11.2
MHz/22.4MHzPCM Sample rate32KHz – 768KHzPlayback time≥10h
MHz/22.4MHzPCM Sample rate32KHz – 768KHzPlayback time≥10h
Balanced HP Output (4.4mm)
Freq. Response+0.008/-0.34 dB (20~20kHz)THD+N0.00015% @1kHz(20~20kHz, A-weight, No load)SNR127dB (20~20kHz, A-weight)Dynamic Range127dB@1kHz (20~20kHz,A-weight)
Channel Isolation-126dBOutput Level+14.4 dBu (High Gain)
-5.6 dBu (Low Gain)Output Power500mW/channel(32Ωload)
-5.6 dBu (Low Gain)Output Power500mW/channel(32Ωload)
Unbalanced Headphone Output(3.5mm)
Freq Response+0.006/-0.38 dB (20~20kHz)THD+N0.00020%@1kHz (20~20kHz, A-weight, No load)SNR125dB (20~20kHz,A-weight)
Dynamic Range126dB@1kHz (20~20kHz,A-weight)Output Level+14.4dBu( High Gain )
-5.6dBu( Low Gain )Output Power500mW/channel(32Ωload)
-5.6dBu( Low Gain )Output Power500mW/channel(32Ωload)
Balanced Line Output( 4.4mm )
Freq Response+0.008/-0.34 dB (20~20kHz)THD+N0.00015%@1kHz (20~20kHz, A-weight, No load)SNR127dB@1kHz (20~20kHz,A-weight)
Dynamic Range127dB@1kHz (20~20kHz,A-weight)Channel Isolation-126dBOutput Level+14.4 dBu
Unbalanced Line Output(3.5mm)
Freq Response+0.006/-0.38dB (20~20kHz)THD+N0.00020%@1kHz (20~20kHz, A-weight, No load)SNR125dB@1kHz (20~20kHz, A-weight)
