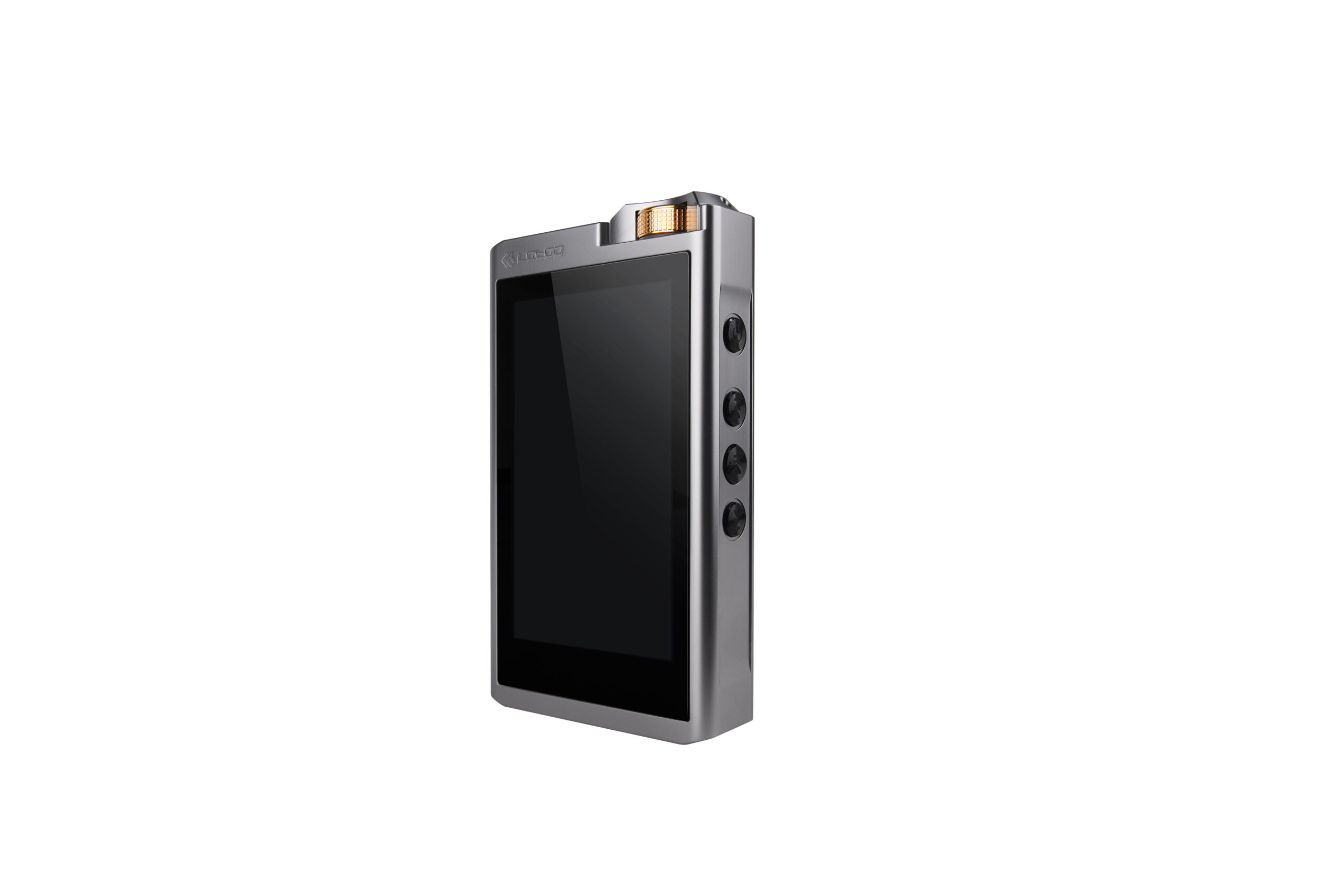

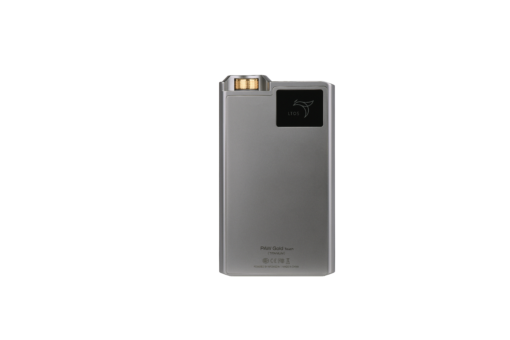

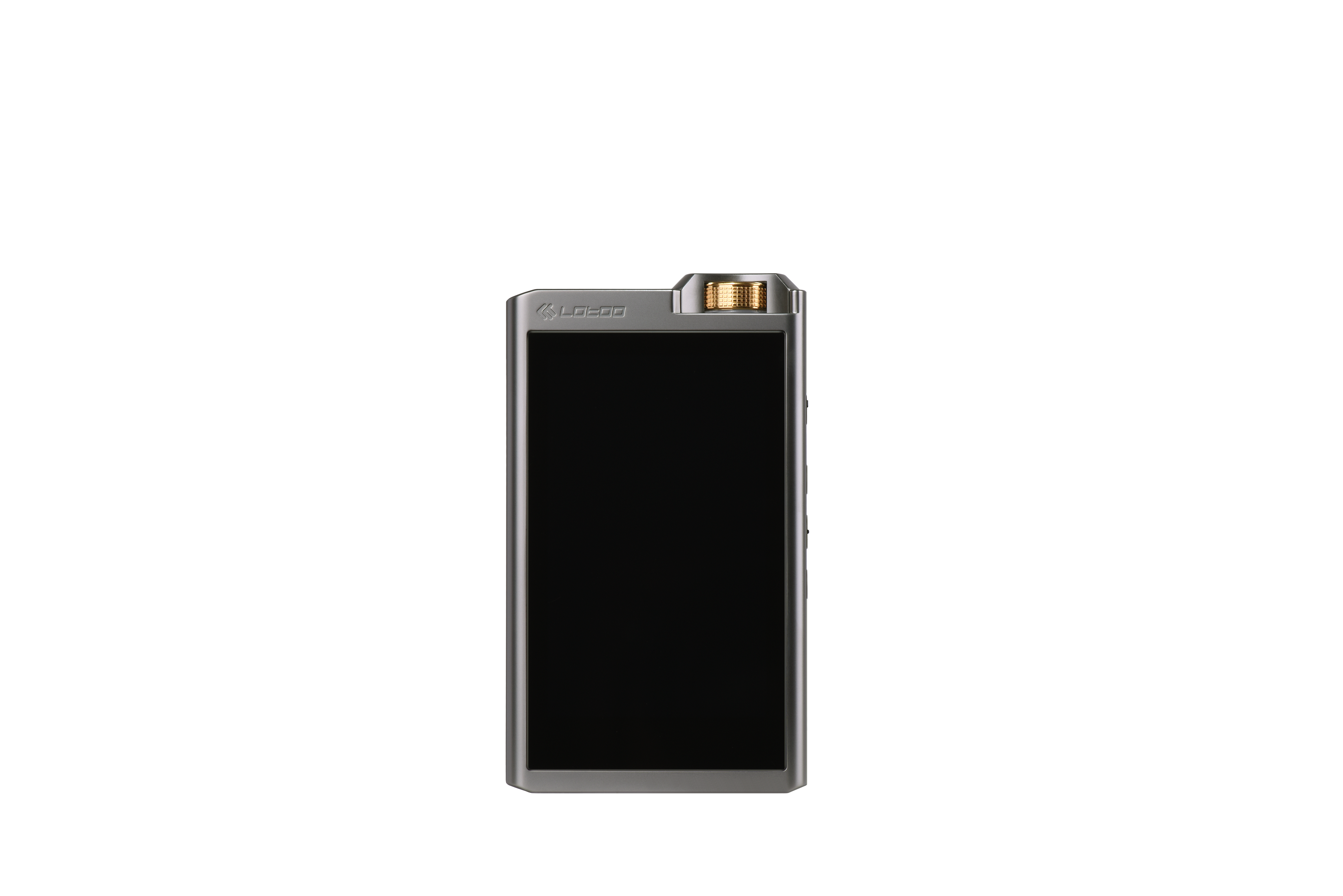

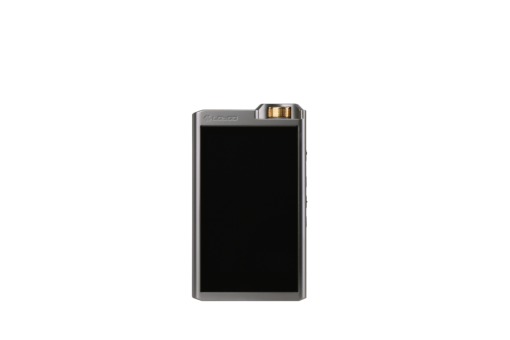

Lotoo PAW Gold Touch – Titanium Edition

3.799

No Streaming Required ?

In that case, this is your Ultra-High-End DAP of choice !

This limited editions has a full titanium body and a higher output achieving even more control on your headphones and IEMs

Important comment on the stock levels:

The Titanium is planned to shipped in the 1st or 2nd week of december 2020.

The stock levels indicate how many units I have available for shipping in that 1st batch!

1 in stock

Description

  • 1 Anti-Finger prints coating

  • 2 DLC (Diamond-Like carbon) coating

    Hardness  9H+

  • 3 Corning Corning Gorilla Glass 5

  • 4 Retina LCD

    3.77 inches IPS GFF Retina LCD

Clear button design
Easy operation

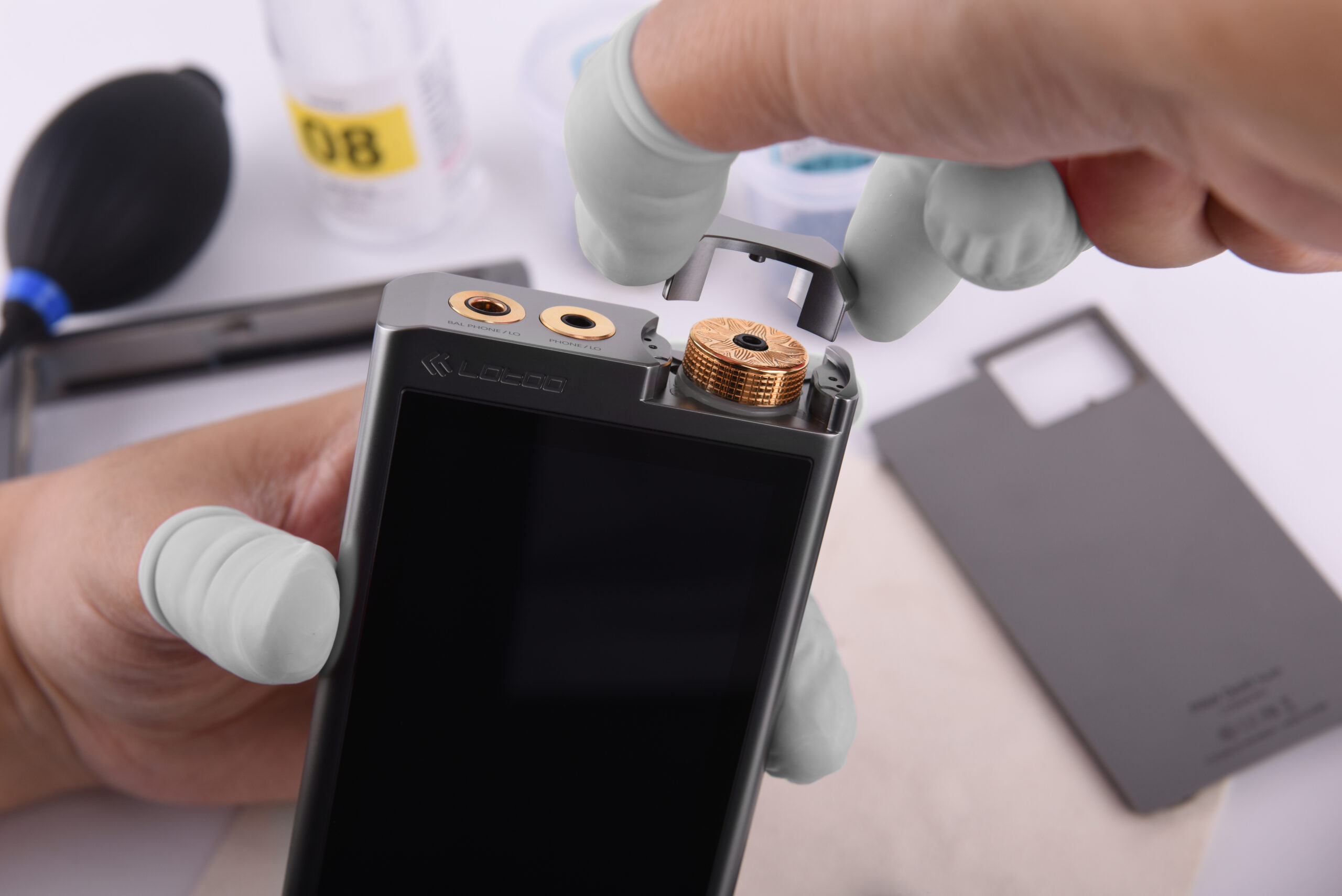

CNC Craft
Aircraft Aluminum Alloy Chassis

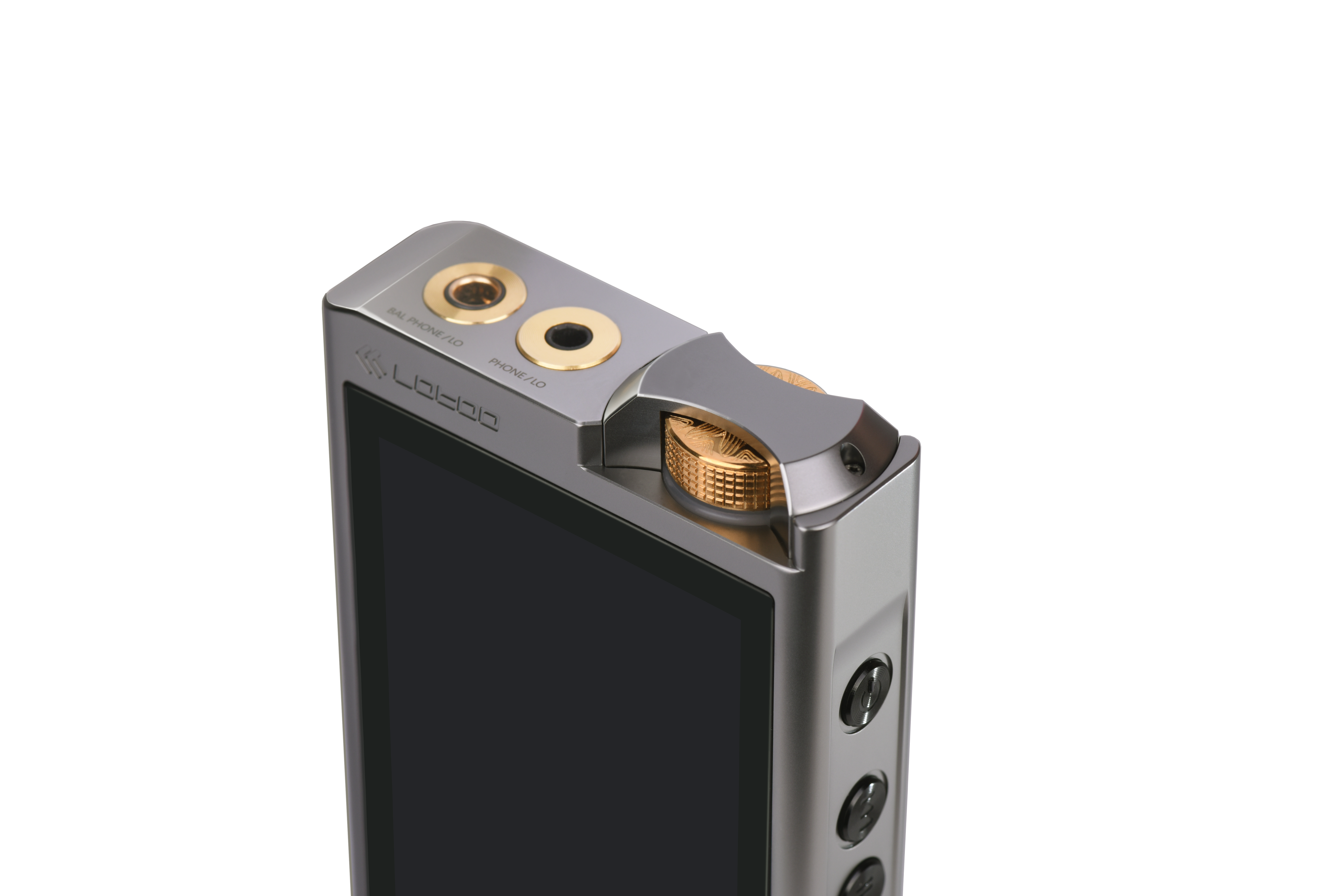

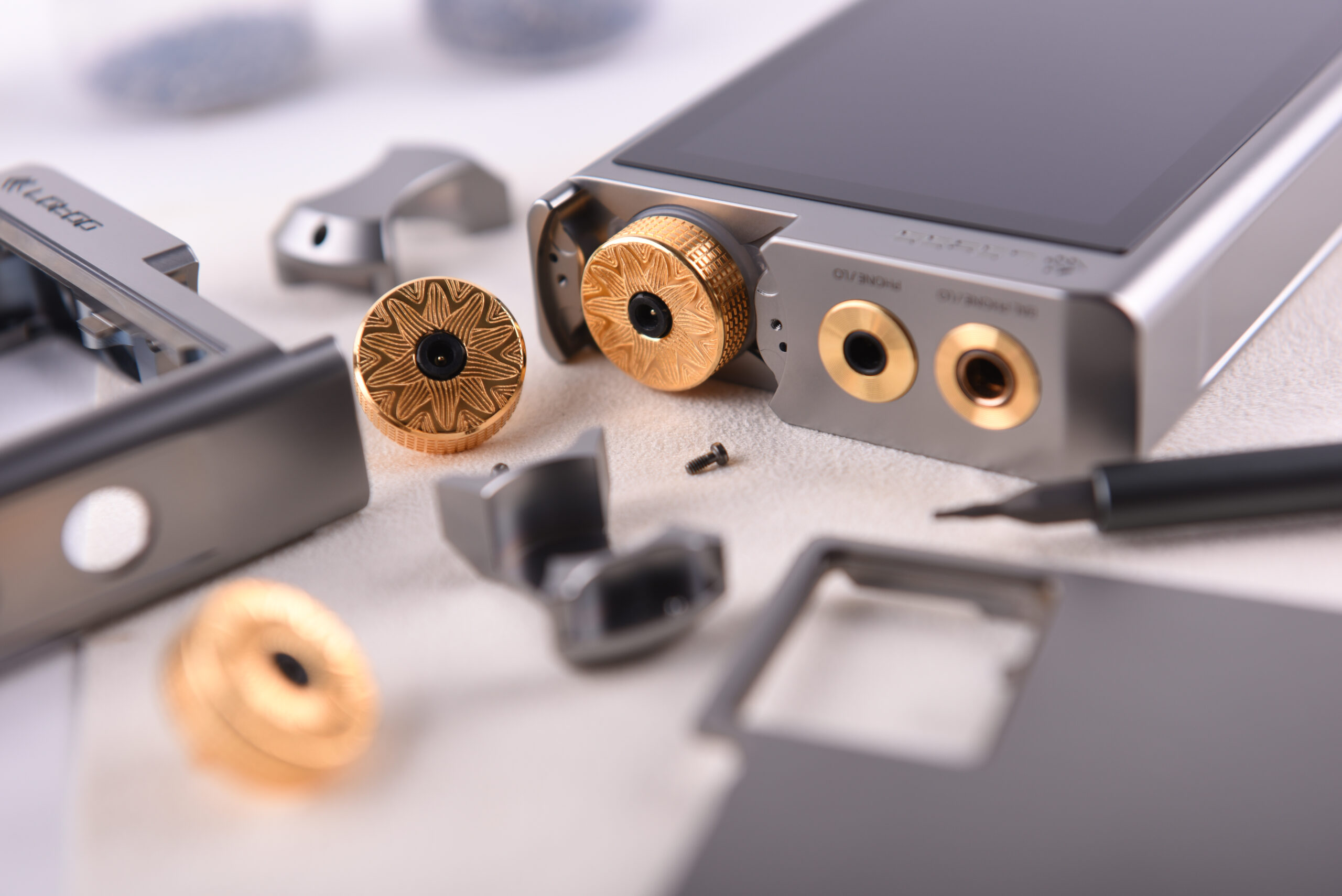

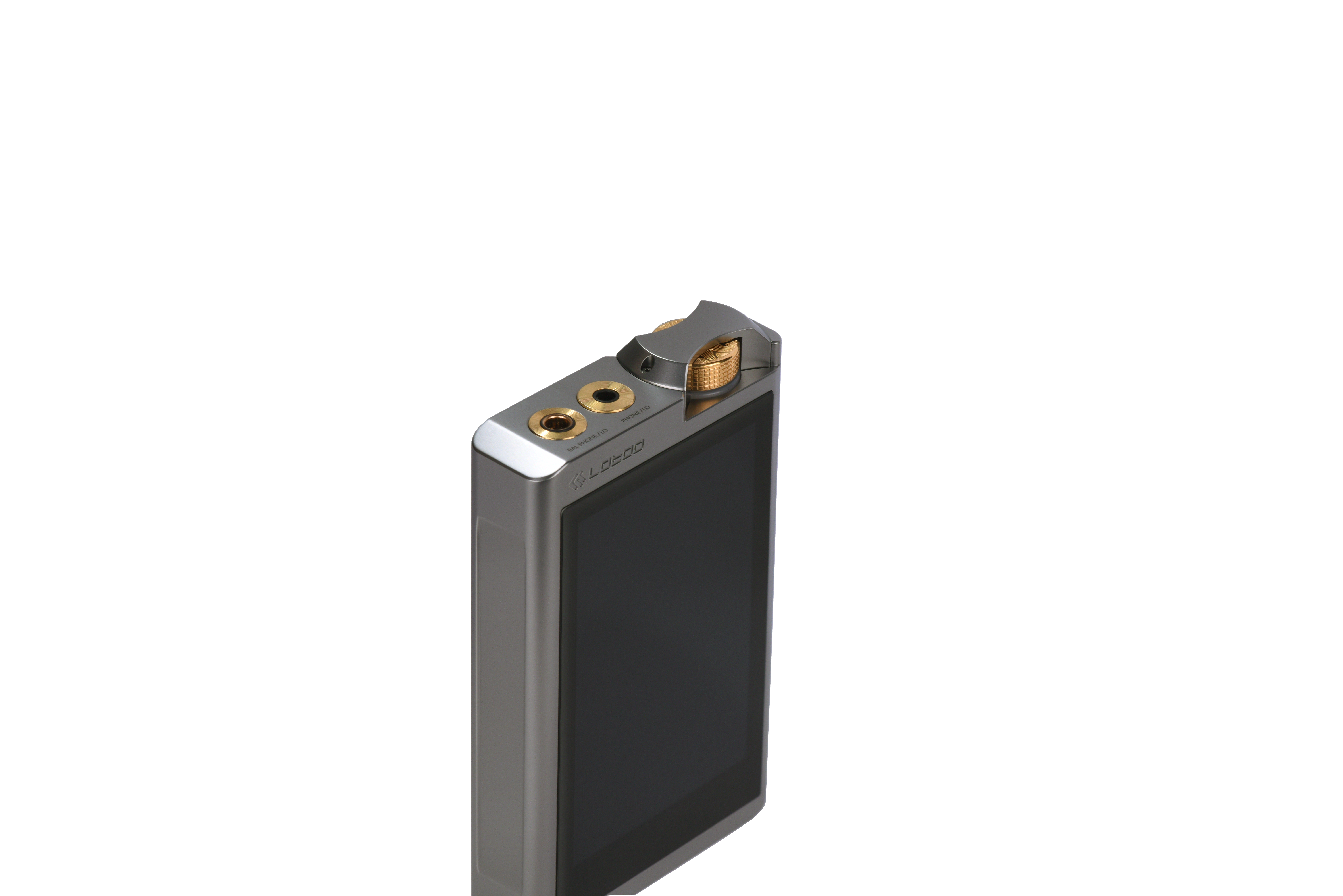

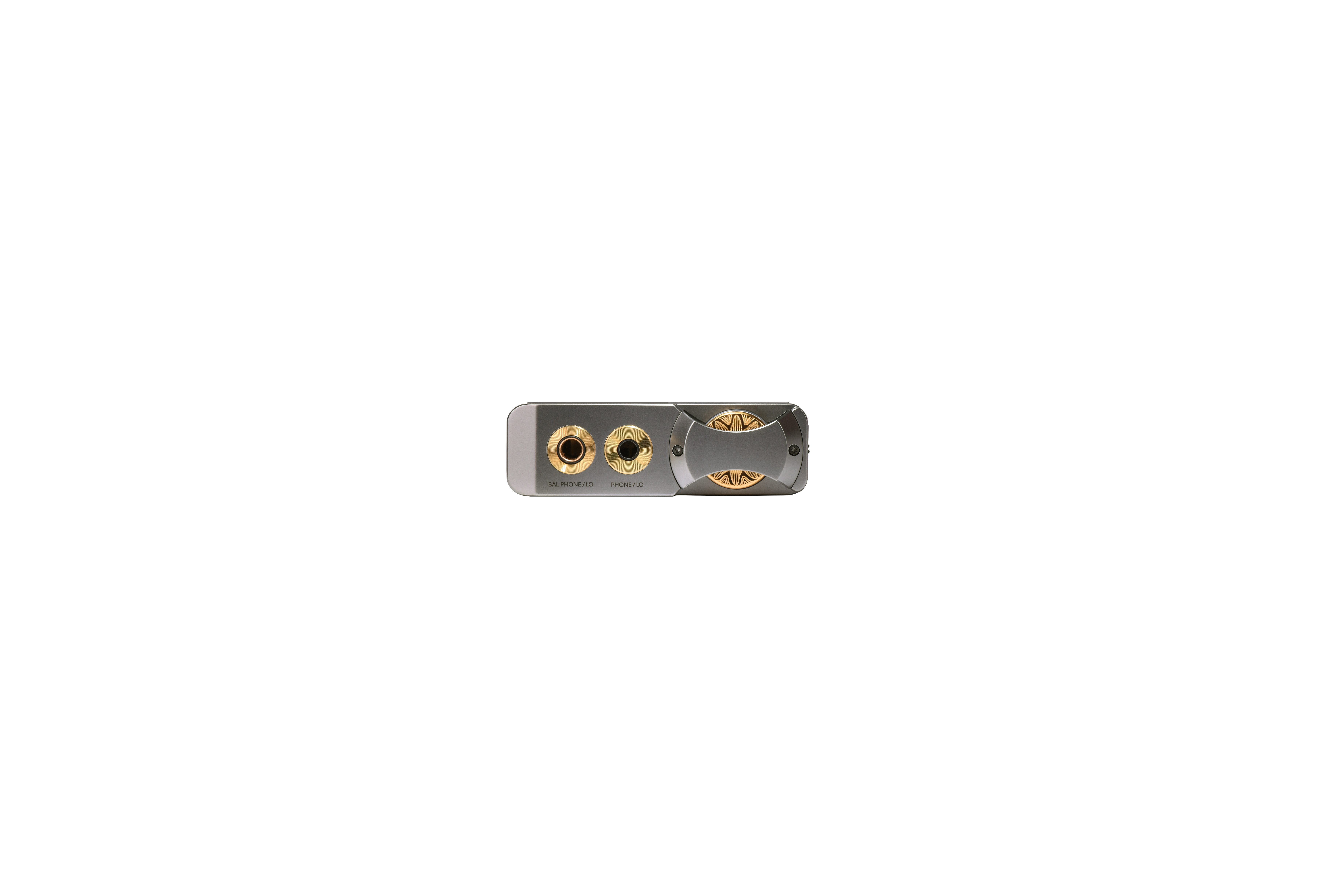

Two different output solutions

4.4mm balanced headphone amp: OPA1622
3.5mm unbalanced headphone amp: LME49600

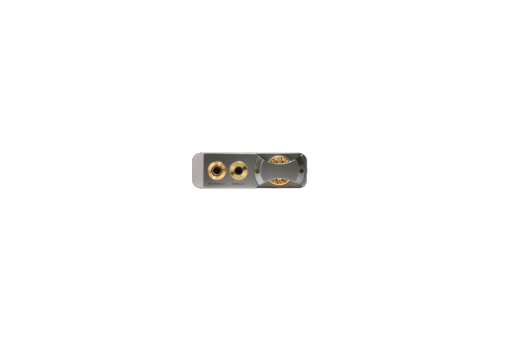

Support 4.4mm balanced and 3.5mm unbalanced output Max. Output 500mW / Per channel

Apollo pattern

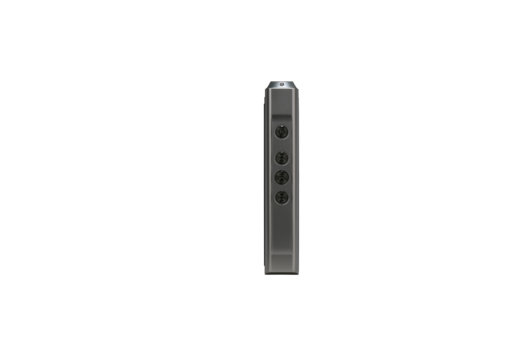

Volume knob
Breath LED

Clear button design
Easy operation

CNC Craft
Aircraft Aluminum Alloy Chassis

Smooth UI experience
Professional Playback Interface

Specs

General Specs

MaterialAircraft Aluminum Alloy ChassisProcessorFreescale i.MX 6Audio DSPADI BF70X DSPWireless Co-processorIngenic X1000Operating SystemLTOSDisplay3.77inch IPS LCD
Display Resolution480×800Interactive ModeTouch + buttonFirmware UpdateSupportedSize68.6 x 119 x 21mm( W x H x D )Weight311g

USB

USB SpecUSB 3.1 Gen2 (10G bps)USB portType-CUSB DACSupported
USB Charge2.5AUSB Data transportSupported

Extended Storage

Storage TypeSD/SDHC/SDXCSpeed LevelSD 4.0 ( UHS-II )
Max. Capacity2TB

Battery Spec

Battery5400mAH Li-Polymer
USB Charger Adapter>5V/2.5A

Bluetooth

BluetoothBluetooth V4.2
HD BluetoothLDAC

Playback

DSD formatDSD64 / DSD128 / DSD256 /DSD512FormatsDFF / DSF / ISO / FLAC / APE /WAV / AAC / ALAC / MP3 / WMA / M4A / WavePack / OGGDAC ChipAKM4497EQXRC ChipAKM4137EQ
Headphone Amp ChipOPA1622 / LME49600DSD Sample rate2.8MHz/5.6MHz/11.2
MHz/22.4MHz
PCM Sample rate32KHz – 768KHzPlayback time≥10h

Balanced HP Output (4.4mm)

Freq. Response+0.008/-0.34 dB (20~20kHz)THD+N0.00015% @1kHz(20~20kHz, A-weight, No load)SNR127dB (20~20kHz, A-weight)Dynamic Range127dB@1kHz (20~20kHz,A-weight)
Channel Isolation-126dBOutput Level+14.4 dBu (High Gain)
-5.6 dBu (Low Gain)
Output Power500mW/channel(32Ωload)

Unbalanced Headphone Output(3.5mm)

Freq Response+0.006/-0.38 dB (20~20kHz)THD+N0.00020%@1kHz (20~20kHz, A-weight, No load)SNR125dB (20~20kHz,A-weight)
Dynamic Range126dB@1kHz (20~20kHz,A-weight)Output Level+14.4dBu( High Gain )
-5.6dBu( Low Gain )
Output Power500mW/channel(32Ωload)

Balanced Line Output( 4.4mm )

Freq Response+0.008/-0.34 dB (20~20kHz)THD+N0.00015%@1kHz (20~20kHz, A-weight, No load)SNR127dB@1kHz (20~20kHz,A-weight)
Dynamic Range127dB@1kHz (20~20kHz,A-weight)Channel Isolation-126dBOutput Level+14.4 dBu

Unbalanced Line Output(3.5mm)

Freq Response+0.006/-0.38dB (20~20kHz)THD+N0.00020%@1kHz (20~20kHz, A-weight, No load)SNR125dB@1kHz (20~20kHz, A-weight)
