NAGRA VFS / CLASSIC VFS (L)

1.9902.090

Book your demo: Call/Whatsapp Stefan on +31 (0)6 83 90 92 66

Clear
SKU: N/A Categories: ,

Description

VFS



Vibration Free System

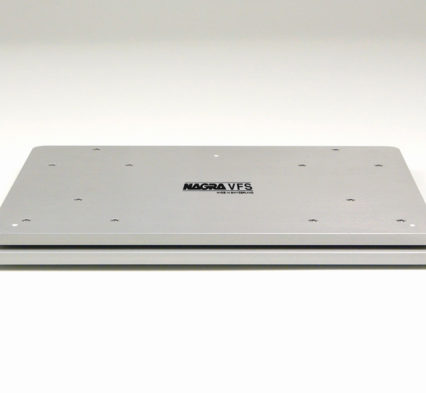

The VFS and CLASSIC VFS (for AMP and for Source) both consist of two base plates, placed one above the other, designed to eliminate mechanical vibration causing noise in other elements of the system, in particular the highly sensitive preamplifiers. The CLASSIC VFS is specifically reserved for use with the deeper chassis, like HD DAC, CLASSIC DAC, TUBE DAC, CLASSIC PREAMP, CLASSIC AMP, CLASSIC INT and CLASSIC PSU, as they are larger than the standard VFS plates.

VFS splitted

VFS detail

Spikes

VPS on VFS

TECHNICAL SPECIFICATIONS

VFS

Top plate: 27.7 x 22.7 cm
Bottom plate: 28.6 x 23.7 cm/ 11.2 x 9.3 inches
Total height: 2.1 cm / 0.82 inches
Weight: 2.5 kg / 5.5 pounds

CLASSIC VFS

Top plate: 33.8 x 27.7 cm / 13.3 x 10.9 inches
Bottom plate: 34.8 x 28.7 cm / 13.7 x 11.3 inches
Total height: 2.1 cm / 0.82 inches
Weight: 4 kg / 8.8 pounds


MECHANICAL SPECIFICATIONS VFS GEL

Optimum Load (kg/4 legs) – Top plate : 5〜15 – Bottom plate : 15〜50
Resonance Point (Hz) – Top plate : 26〜18 – Bottom plate : 22〜15
Resonance Magnification (dB) – Top plate : 13- Bottom plate : 20〜18
Recommended Frequency (Hz) – Top plate : 37〜 – Bottom plate : 30〜
Deflection (mm) – Top plate : 1.1〜2.2 – Bottom plate : 0.7〜2.0
Color – Top plate : Orange – Bottom plate : Blue



Merk

Nagra

Additional information

Version

S, L
