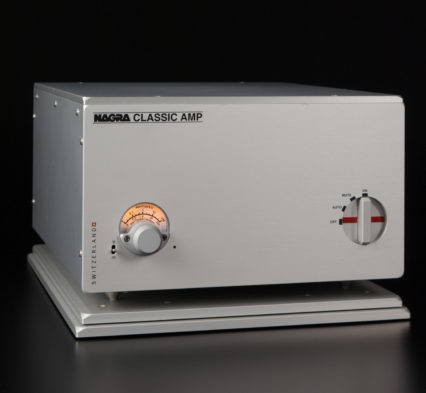

NAGRA CLASSIC AMP
NAGRA CLASSIC AMP High power solid-state stereo amplifier
The Nagra CLASSIC AMP was designed for extremely high quality installations, which require high power while maintaining a perfect musical delivery of the Watts.
The unit operates in pure class A over a very large power band and beyond in class AB. Each of the output stages is based on tandem MOSFET transistors of exceptional characteristics.
TECHNICAL SPECIFICATION
ELECTRONICS
| Power: | 100 W RMS per channel into 8 Ω |
| Sensitivity: | 1 V or 2 V RMS |
| Bandwidth: | 10 Hz to 80 KHz, +0/-3 dB |
| Crosstalk: | >70 dB |
| Signal-to-noise ratio: | Typically 110 dB ASA “A” weighted |
| THD+N: | < 0.05% |
| Input impedance: | >100 KΩ |
| Automatic start: | For input level >10 mV |
| Protection: | Overheating > +60° C (140° F) |
| deactivates the amplifier: | DC speaker protection above ± 2.5 VDC |
GENERAL
| Consumption: | 400 W max less than 1 W in standby and Auto mode |
| Weight: | 18 Kg (39 lb 10 oz) |
| Size: | 277 x 395 x 174 mm (11 x 15½ x 7″) |
| Operating range: | 90 – 110 V or 110 -132 V or 180 – 264 V a.c. 50 – 60 Hz |
ACCESSORIES
CLASSIC VFS for AMP: Vibration Free Support
