Chord Electronics 2yu

570

The charming thing about the 2yu – in combination with the 2go !!! – you can have a superb Roon Endpoint in your WIFI or LAN Network – With BNC into your MScaler / DAVE Set and you are as Online as you can be…

Category:

Description

2YU

Musically transparent audio interface for 2go

The 2yu digital interface turns the 2go streamer/server into a multi-output standalone streamer capable of working with the Hugo M Scaler and a range of DACs

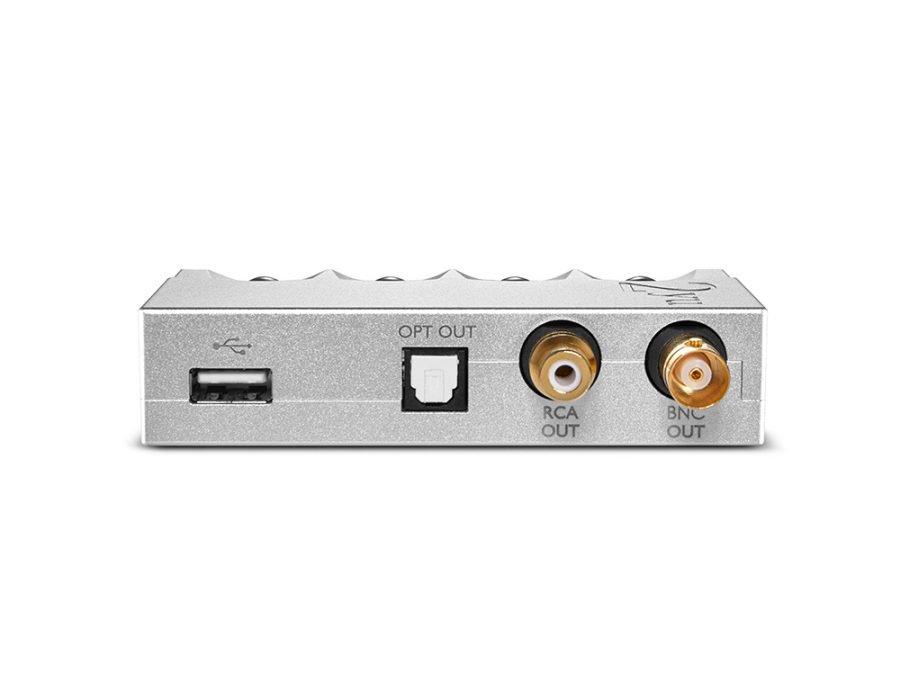

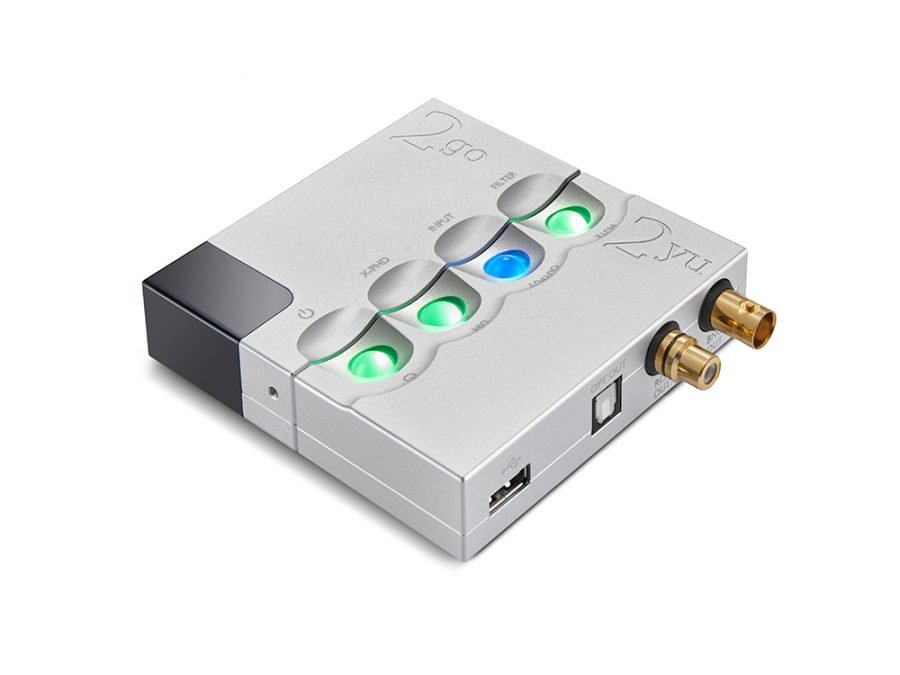

2yu is an advanced designed-for-2go digital interface enabling 2go as a fully-fledged standalone streamer, ready to be used with external DACs and devices, including the 768-kHz upscaling Hugo M Scaler. 2yu connects directly to 2go to add TOSLINK optical S/PDIF, coaxial and BNC (both 75 ohms) digital outputs, plus a cleverly integrated USB-A output.

2yu boasts 2,000 MIPS (million instructions per second) of processing power, an integrated sample rate converter, plus a low-jitter audio phase lock loop. Highly flexible in its potential applications, 2go with 2yu is also ideal for installers wishing to create a discreet remote Roon streaming solution: the duo can be wired into an Ethernet port to provide streaming to a system in any room. 2yu alone can also be used with PCs and Macs via USB to create a high-quality USB-to-digital-audio convertor for audio.

Like 2go, 2yu is also hand-made in the UK using aircraft-grade aluminium and the same high-quality manufacturing processes inherent in all Chord Electronics products. Like the Hugo 2, 2yu features four polychromatic spherical controls governing output selection, power, mute and dim functions.

Compatibility:

In order for 2yu to inherit streaming/music transport capabilities or function as an audio interface, a connection with 2go is required.

Power supply:

Micro USB (5v 1amp minimum required)

PCM and DSD support:

44.1kHz – 768kHZ (16bit – 32bit) | DSD 64 to DSD 256 (via DoP)

Sample rate converter:

Integrated, automatic downsampling is provided if a higher sample rate is being played than the output can support.

Digital audio outputs:

USB Type-A (up-to 768kHz or DSD 256), BNC or RCA coax (up-to 384kHz or DSD 128) and Optical (up-to 96kHz or DSD 64)

Processing power:

2000MIPS

Brand

Chord Electronics
